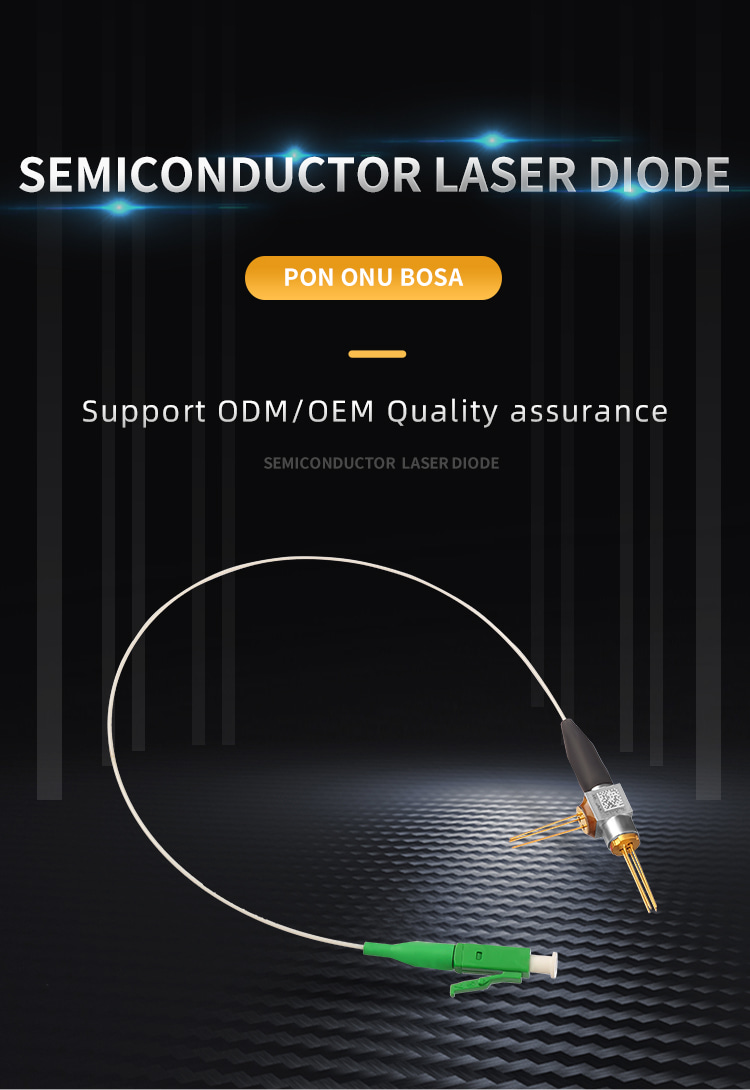

PON ONU BOSA Bi-Directional Optical Sub-Assembly

Features：

● Designed for short or long reach application

● InGaAs Photodiode

● Integrated 1610/1550nm WDM for a single fiber

● MQW DFB Laser device

Inquiry now Download

Product Details

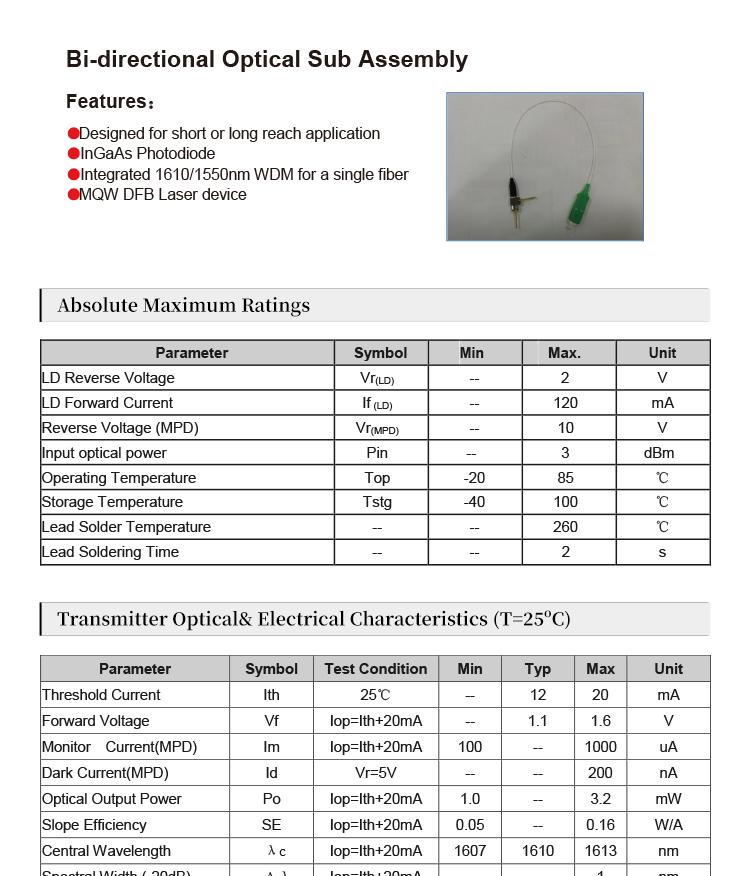

Bi-directional Optical Sub Assembly

Features：

● Designed for short or long reach application

● InGaAs Photodiode

● Integrated 1610/1550nm WDM for a single fiber

● MQW DFB Laser device

Specifications:

Absolute Maximum Ratings

Parameter	Symbol		Min	Max.	Unit
LD Reverse Voltage	Vr(LD)		--	2	V
LD Forward Current	If	(LD)	--	120	mA
Reverse Voltage (MPD)	Vr(MPD)		--	10	V
Input optical power	Pin		--	3	dBm
Operating Temperature	Top		-20	85	℃
Storage Temperature	Tstg		-40	100	℃
Lead Solder Temperature	--		--	260	℃
Lead Soldering Time	--		--	2	s

Transmitter Optical& Electrical Characteristics (T=25ºC)

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Threshold Current	Ith	25℃	--	12	20	mA
Forward Voltage	Vf	Iop=Ith+20mA	--	1.1	1.6	V
Monitor Current(MPD)	Im	Iop=Ith+20mA	100	--	1000	uA
Dark Current(MPD)	Id	Vr=5V	--	--	200	nA
Optical Output Power	Po	Iop=Ith+20mA	1.0	--	3.2	mW
Slope Efficiency	SE	Iop=Ith+20mA	0.05	--	0.16	W/A
Central Wavelength	λc	Iop=Ith+20mA	1607	1610	1613	nm
Spectral Width (-20dB)	Δλ	Iop=Ith+20mA	--	--	1	nm
Side-mode Suppression Ratio	SMSR	Iop=Ith+20mA	30	--	--	dB
Optical Isolation	ISO	--	30	--	--	dB

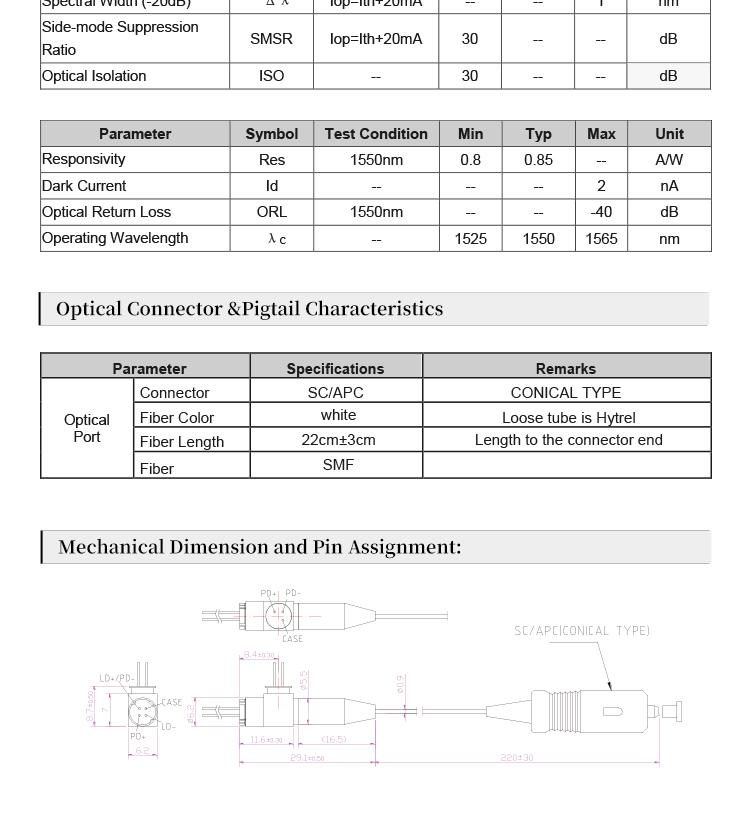

Receiver Optical/Electrical Characteristics

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Responsivity	Res	1550nm	0.8	0.85	--	A/W
Dark Current	Id	--	--	--	2	nA
Optical Return Loss	ORL	1550nm	--	--	-40	dB
Operating Wavelength	λc	--	1525	1550	1565	nm

Optical Connector &Pigtail Characteristics

Parameter		Specifications	Remarks
Optical Port	Connector	SC/APC	CONICAL TYPE
	Fiber Color	white	Loose tube is Hytrel
	Fiber Length	22cm±3cm	Length to the connector end
	Fiber	SMF
