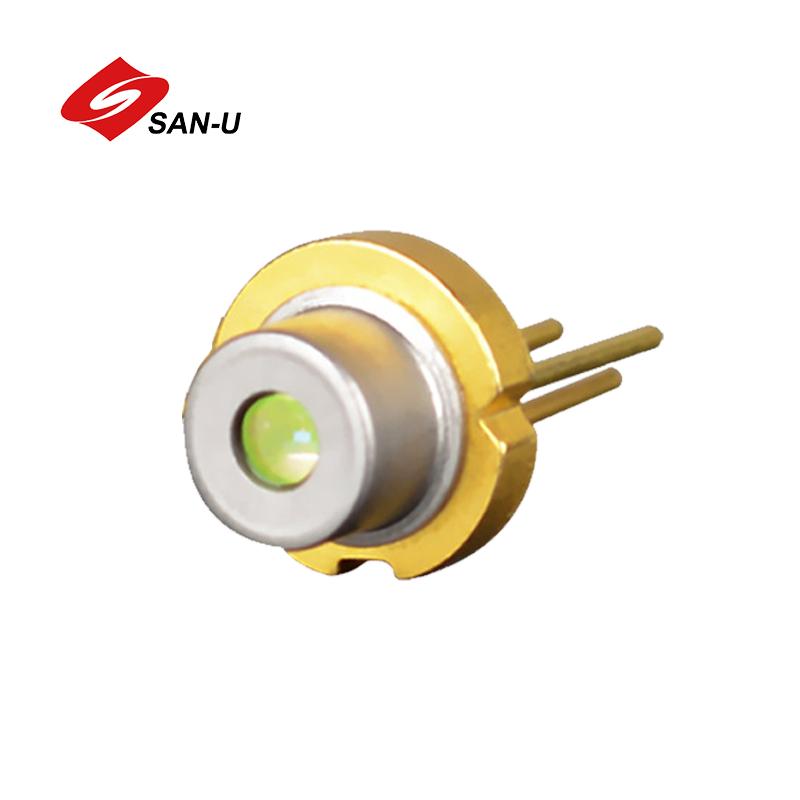

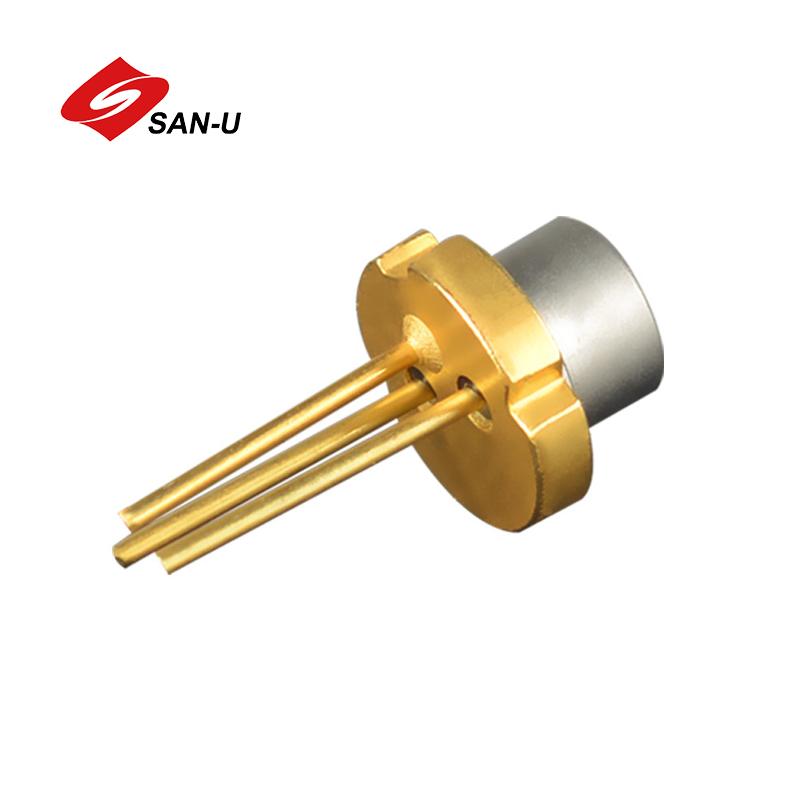

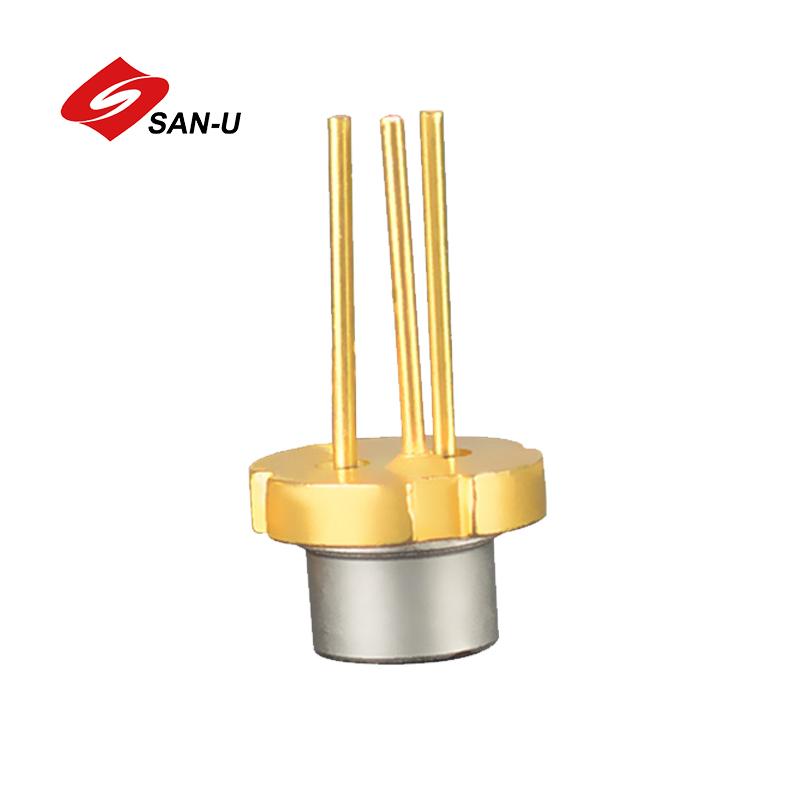

905nm 15/20/25/50/75W DFB LD TO-CAN(TO56-3pin) laser diodeSeries

905nm 15/20/25/50/75W DFB LD TO-CAN(TO56-3pin) laser diodeSeries

Features：

● Laser wavelength 905 nm

● Suited for short laser pulses from 1 to 100 ns

● Robust TO-can package for high volume applications

● Not released for automotive applications

Applications：

● 3D Sensing, Electronic Equipment, Industrial Automation (Machine Controls, Light

Barriers, Vision Controls)

Wavelength :
905nm
Power :
15/20/25/50/75W

Inquiry now Download Download Download

Product Details

Features：

● Laser wavelength 905 nm
● Suited for short laser pulses from 1 to 100 ns
● Robust TO-can package for high volume applications
● Not released for automotive applications

Applications：

● 3D Sensing, Electronic Equipment, Industrial Automation (Machine Controls, LightBarriers, Vision Controls)

Specifications：
Absolute Maximum Ratings:

Parameter	Symbol	Min.	Max.	Unit
Reverse Voltage	Vr	—	3	V
Forward Current	If	—	7	A
Peak output power	Popt	—	20	W
Pulse width (FWHM)	tP	—	100	ns
Duty cycle	dc	—	0.1	%
Operating Temperature	Top	-40	+85	℃
Storage Temperature	Tstg	-40	+100	℃
Lead Solder Temperature	—	—	260	℃
Lead Solder Time	—	—	10	s

Characteristics：（Ta=25℃ IF = 7 A; tp = 100 ns; D = 0.01 %）
Parameter	Symbol	Min.	Typ.	Max.	Unit
Threshold Current	Ith	—	1	—	A
Optical Output Power	Pout	15	—	W
Forward Voltage	Vf	—	16	—	V
Peak wavelength	λp	895	905	915	nm
Spectral bandwidth (FWHM)	?λ	—	—	5	nm
Beam divergence (FWHM) parallel to pn-junction	θ∥	—	—	10	°
Beam divergence (FWHM) perpendicular to pn-junction	θ⊥	—	—	30	°
Laser aperture (FWHM) parallel to pn-junction	W\|\|	—	40	—	μm
Laser aperture (FWHM) perpendicular to pn-junction	W┴	—	10	—	μm

Product Description

Our Advantages

Xiamen San-U Optronics Co., Ltd was established in 2001 year, which is a new high-tech enterprise

specializing in R&D and massproduction in highspeed semi-conductor Laser / detector , optical

components and module.San-U products are widely used incloud computing, HTTP,sensor detector

territory ,optical telecommunication,and so on.

San-U Company established “Xiamen University San-U Optronics Technology R&D Center” and

“Xiamen Optical communicationcomponents test key lab” Successively based on Industry-University

Cooperation， San-U R&D team burden more t han 20projects of National,Province and city class

innovation fund and technology aid, which possesses 4 items innovation patents andmore than 20

realistic new type patents. The results and findings of R&D by San-U are all turned into mass

production and becomethe market hot points products. San-U is awarded as ‘Xiamen Leading

enterprise as technology small giants’ , ‘Fujian Innovation enterprise’. Nationa l Innovation Fund

Project - - 10G Semi-conductor Laser and components has also been verified. San-U company

has priority to enter Chinese domestic market by replace import products. San-U has already

established Automatic Chip Auto assembly line, components auto coupling production line and

has already access mass production. San-U production line has already realize the information

and intelligence, which is atleading position within domestic. Optical components automatic mass

production technology development project has already gained the National Innovation Fund’s

major projects support. In optical communication industry transformation and upgrading to

automation scale mass production aspect has demonstrative effect.
